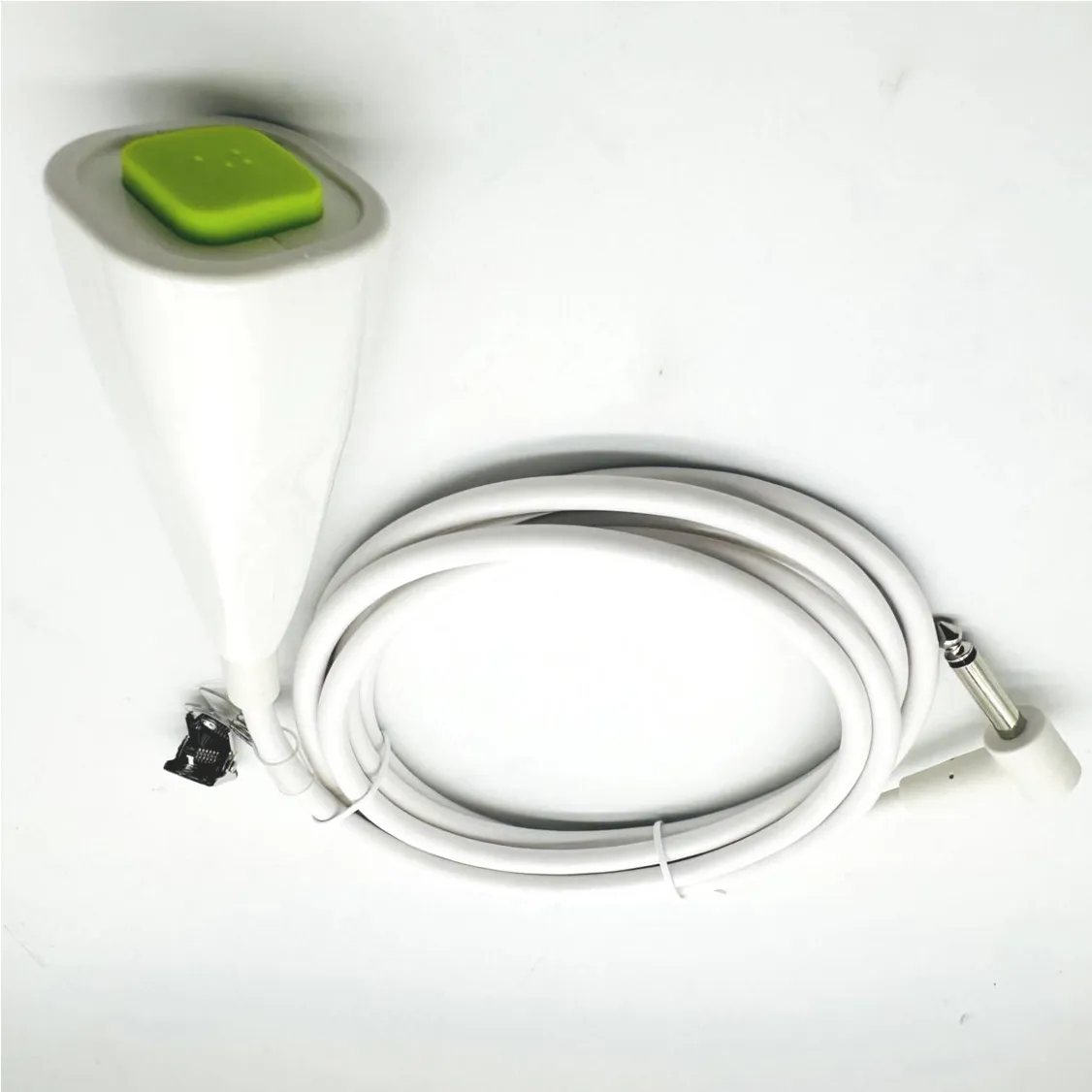

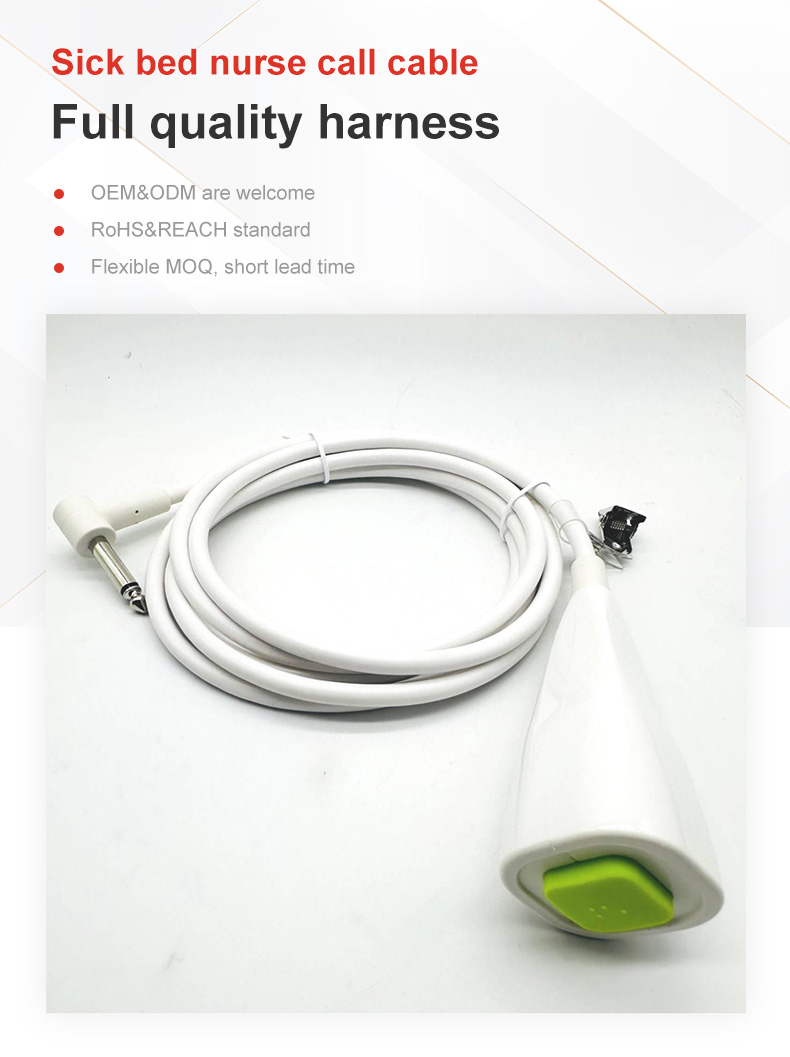

Medical-Grade nurse call cable Assembly for Life-Critical Hospital Systems

Ensure instant, reliable communication in healthcare environments with our Sick Bed Nurse Call Cable, a purpose-built Medical Grade Cable designed for hospital nurse call systems. Combining biocompatible materials with fail-safe engineering, this Medical cable enables patients to summon assistance effortlessly while withstanding repeated disinfection cycles. Its antimicrobial design meets ISO 13485 standards, making it ideal for ICUs, geriatric wards, and high-infection-risk zones.

Clinical-Grade Technical Specifications

• Cable:

• 20AWG*3C + cotton-reinforced PVC jacket (OD:6.0mm Matte), balancing flexibility with pull resistance.

• Length: Customizable 2200mm~4200mm for versatile bed-to-wall routing.

• Connectors:

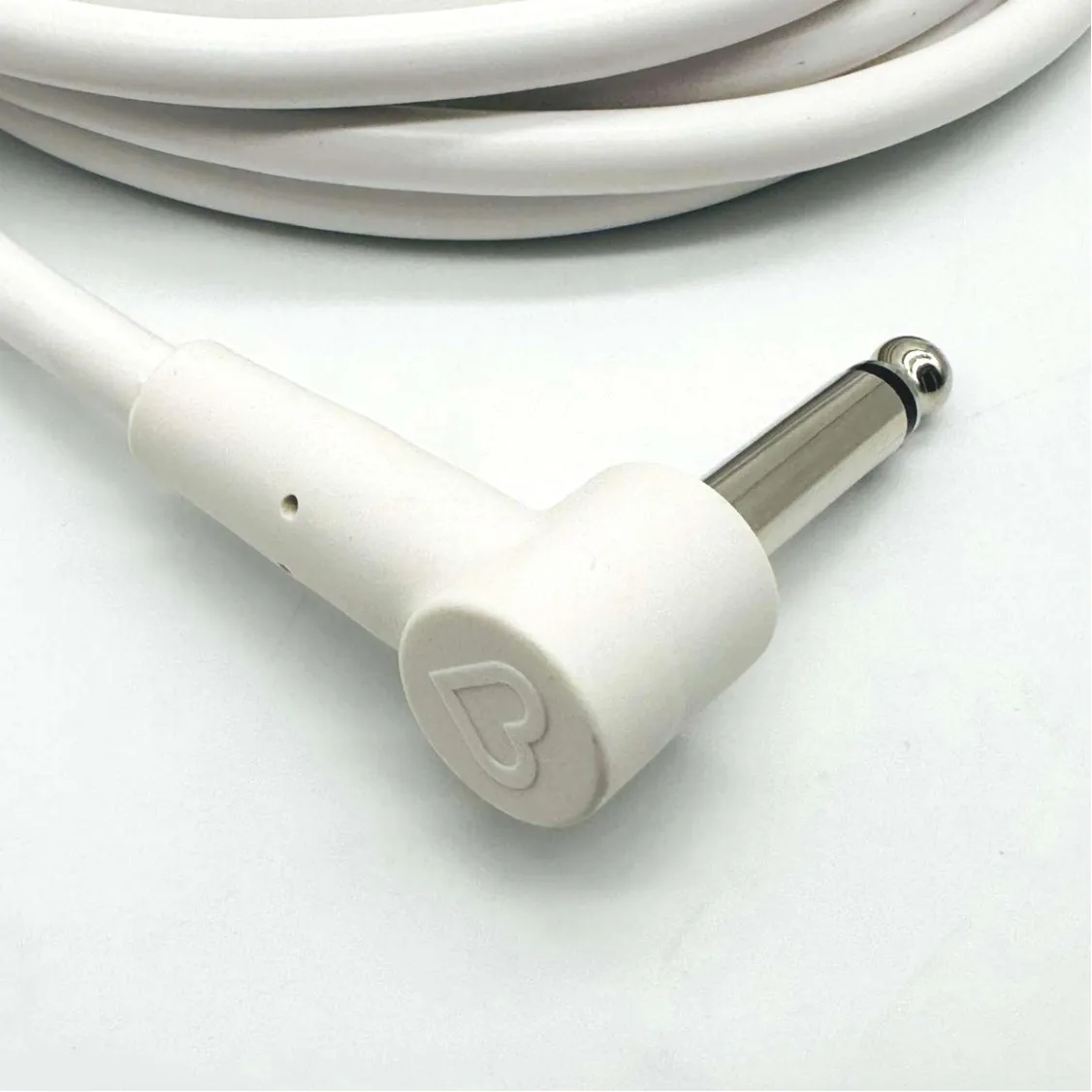

• Standard: 6.35mm DC jack (nickel-plated PVC plug).

• Modular Options: RJ45, USB, DC, Lemo, Pogo-pin, or Mini-Din connectors upon request.

• Control Module:

• PCBA: 2.0mm UL 94-V0 flame-retardant substrate + tact switch (300g actuation force) for deliberate, accidental-press prevention.

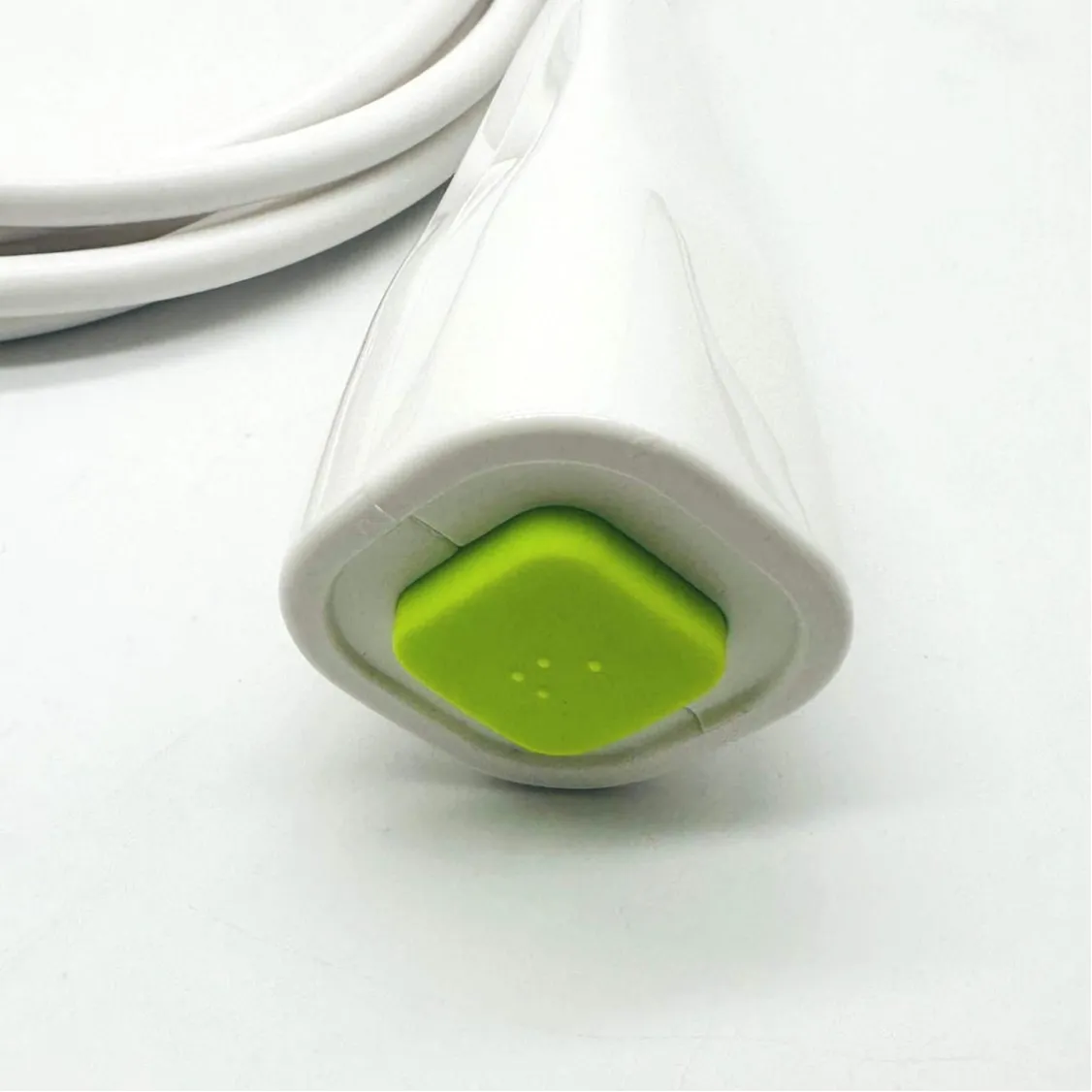

• Handle: ABS housing + silicone button (antibacterial coating) + silicone rubber (SR) seal (IP54 rated).

Rigorous Validation for Medical Safety
Every Custom Medical Cable undergoes 100% electrical testing (HIPOT, continuity, insulation resistance) and biocompatibility validation. Resistant to isopropyl alcohol, hydrogen peroxide, and UV sterilization. Compliant with RoHS & REACH standards for toxic-free deployment in sensitive environments. Flexible MOQs (from 50 units) and 7-day lead times ensure rapid emergency department upgrades.

Tailored for Healthcare Workflows
Why compromise during emergencies? Our OEM&ODM services enable:

• Custom lengths (1m–10m) or jacket colors (e.g., blue/red for priority coding).

• Integration of RFID/NFC for asset tracking.

• Enhanced IP67 sealing for burn units or fluid-prone areas.
  From Nurse call cable assembly kits to bespoke Medical Grade Cable solutions, we adapt to your hospital’s protocols.

Why Trust This Nurse Call Cable?

1. Antimicrobial Defense: Silicone button coating inhibits MRSA/E. coli growth.

2. Tactile Safety: 300g switch force prevents accidental alarms during patient movement.

3. Durability: Cotton-PVC jacket survives 50,000+ bed adjustments.

4. Compliance: Exceeds IEC 60601-1 electrical safety standards for medical equipment.

Trust a Medical Cable engineered for life-critical moments—backed by a 5-year warranty and 24/7 technical support.
