Precision Customized cable Solutions for Seamless Cabinet Lighting Systems

Transform complex LED installations with SW’s purpose-built Customized Cable harnesses. Engineered specifically as splitting solutions for kitchen cabinet LED systems, this Custom Cable assembly eliminates messy wiring while ensuring reliable power distribution. Featuring an industry-exclusive 8P XHB connector, it enables clean daisy-chaining between cabinets – perfect for designers demanding both aesthetics and functionality. Every unit undergoes full electrical validation before shipment and complies with stringent RoHS & REACH standards, guaranteeing safety in residential environments.

Technical Construction Designed for Real-World Reliability

Precision matters in cabinet installations:

• •

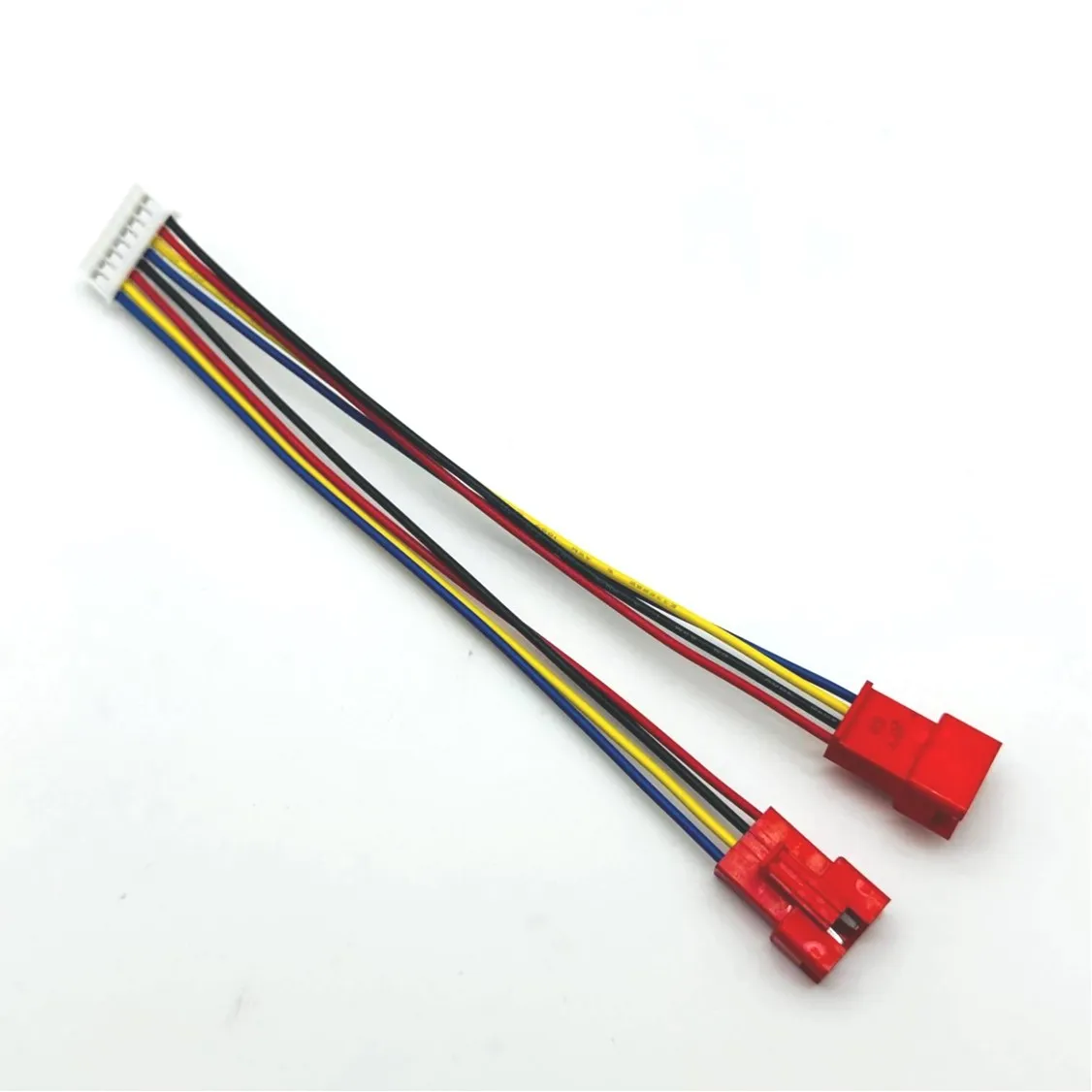

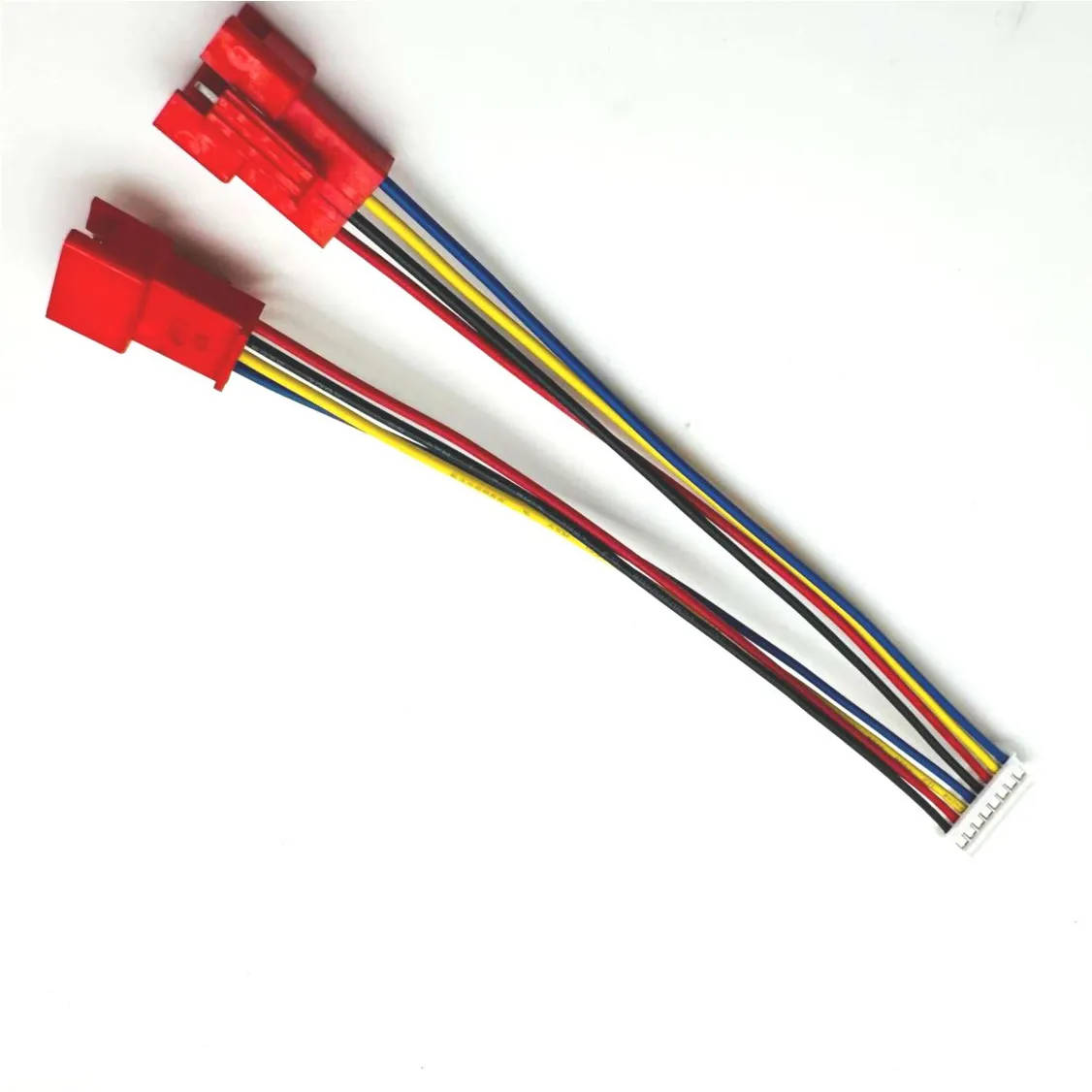

  Primary Cable: 1007#24AWG color-coded wires(Blue/Yellow/Red/Black) for intuitive voltage identification and error-proof connections




• •

  Connector 1: XHB 8P connector (White)– High-current terminal with vibration-resistant locking




• •

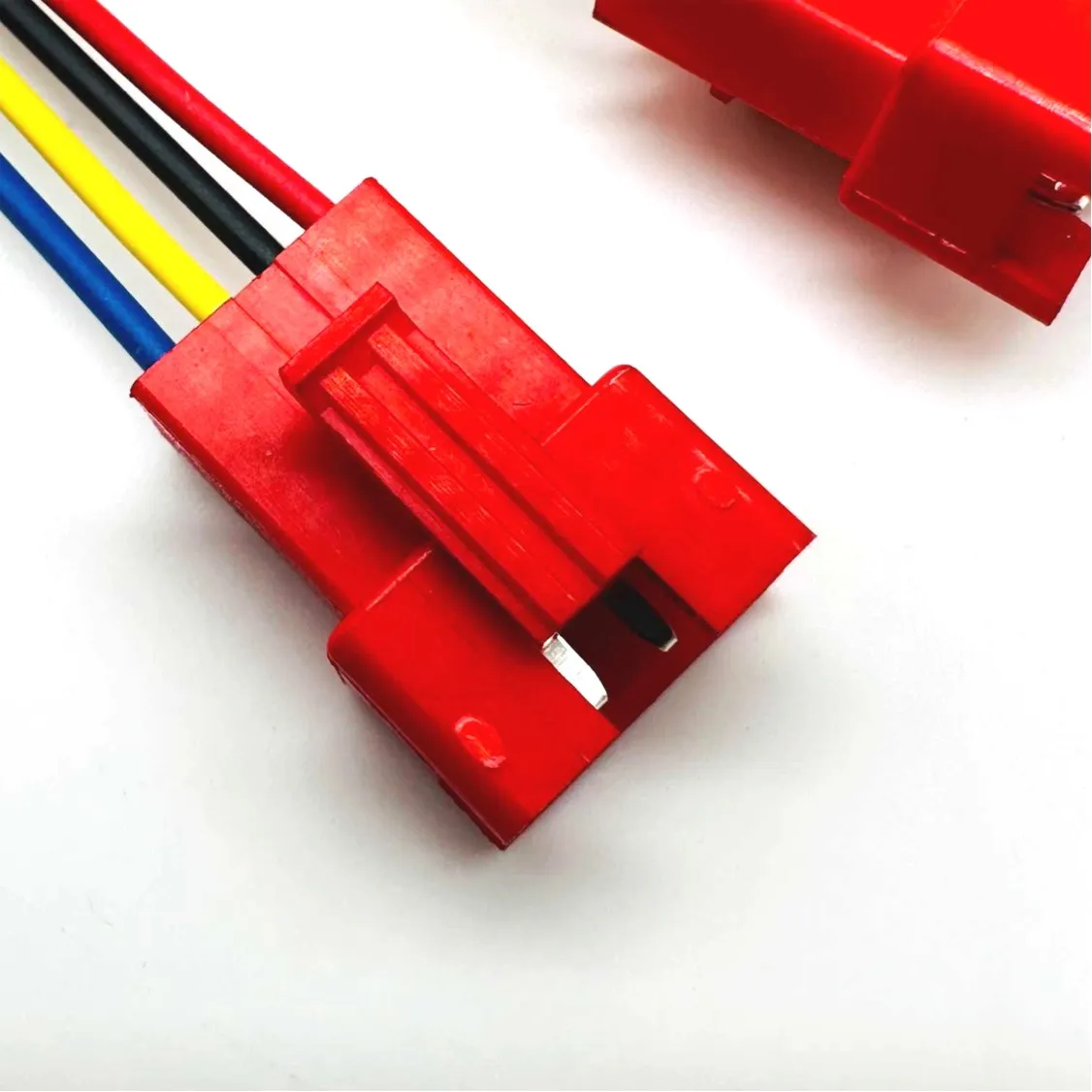

  Connectors 2-3: Dual SM 4P connectors (Red)enabling secure LED strip/sensor splits

  Unlike generic custom usb c cables, this harness solves specialized voltage-splitting challenges in constrained spaces, with all components rated for 80°C operation.







Agile Customization & Hassle-Free Integration

Your design vision drives our manufacturing:

• •

  Request any wiring configuration length or connector placement




• •

  Choose sheath/connector colors beyond standard Blue/Yellow/Red/Black/White




• •

  Packaging adapts to your needs: individual or blister packaging upon request

  We support flexible MOQs (from prototypes to bulk orders) and deliver in short lead times. OEM & ODM clients can modify this Customized Cable for unique cabinet profiles, enhanced IP ratings, or custom branding – submit your diagrams for rapid prototyping.
