Precision Custom Wire Harness Solutions for Professional Cabinet Lighting

Eliminate installation headaches with SW’s specialized Cabinet Wire Harness featuring 10P XHB Connector – engineered exclusively as a splitting solution for kitchen cabinet LED systems. This meticulously crafted Custom Wire Harness simplifies complex wiring layouts while delivering flawless power distribution. Unlike generic solutions, it offers truly Customized cable routing with future-proof expandability, ensuring your lighting project scales seamlessly. Each unit undergoes comprehensive electrical testing pre-shipment and meets strict RoHS & REACH standards for safe residential use.

Robust Technical Construction for Demanding Environments

Every component is precision-matched for cabinet applications:

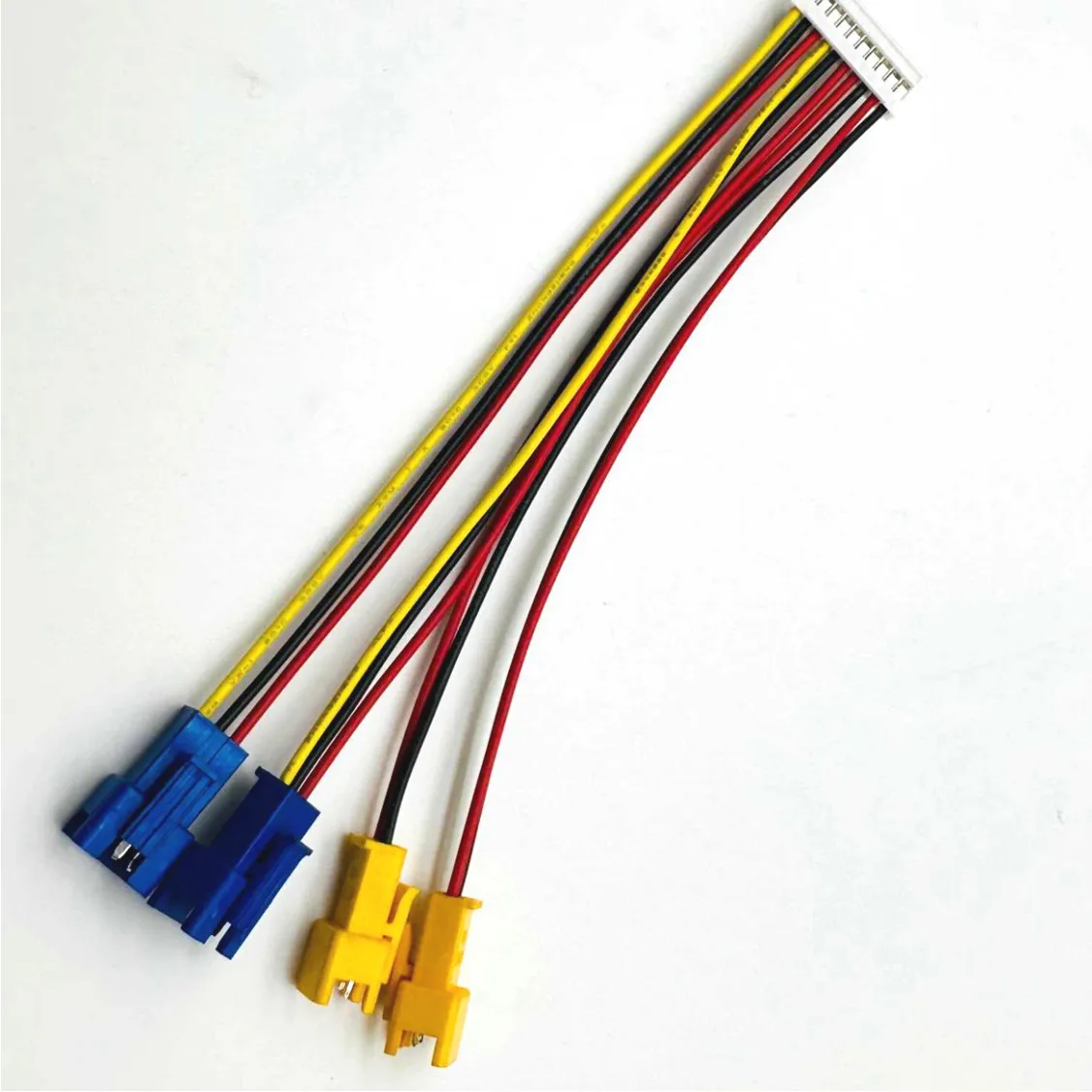

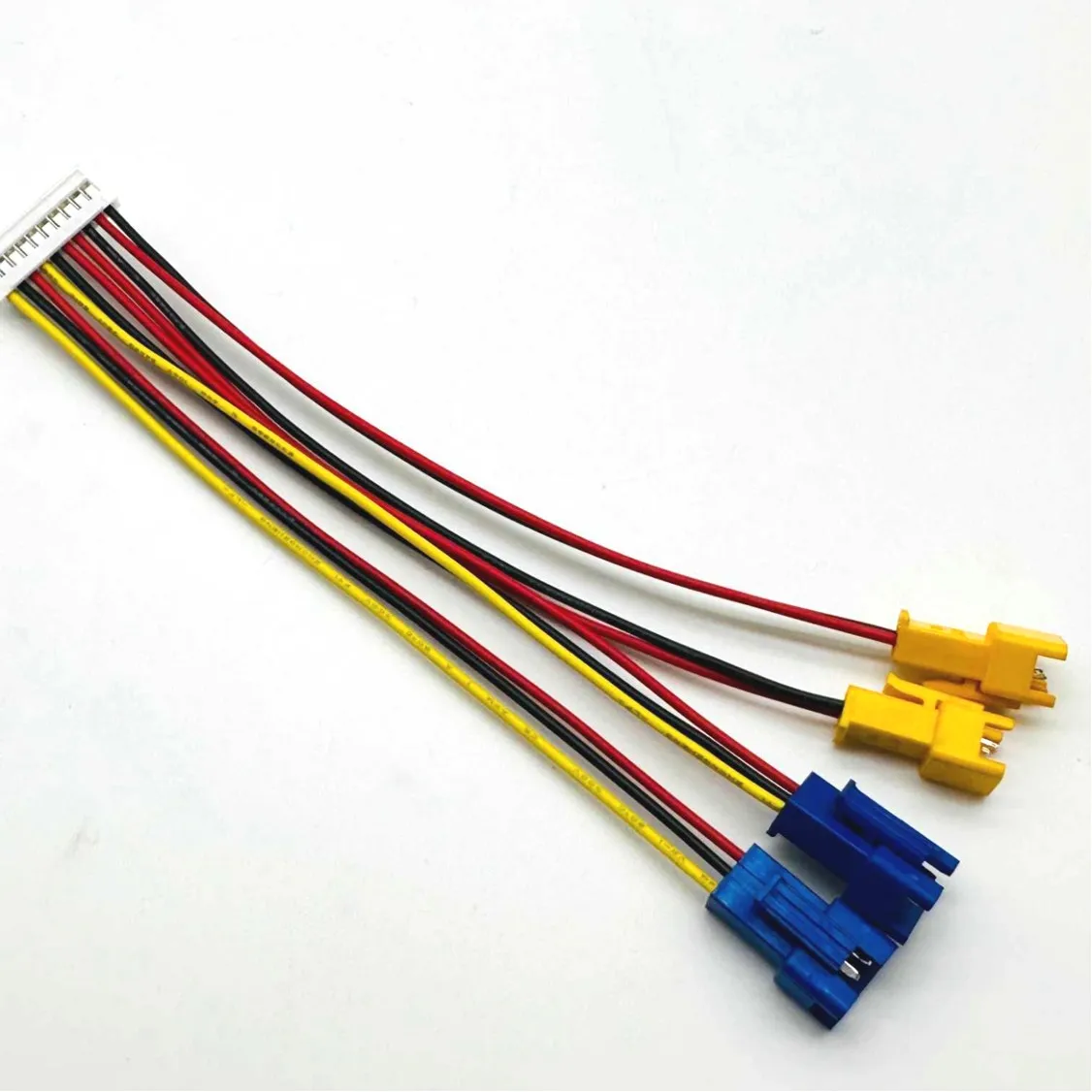

    Primary Cable: 1007#24AWG color-coded wires(Yellow/Black/Red) enabling intuitive polarity identification and voltage separation

    Connector 1: XHB 10P connector (White)– High-density terminal supporting expanded circuit configurations

    Splitting Connectors:

        SM 3P connectors (Blue ×2)– Ideal for RGB LED strips or sensors

        SM 2P connectors (Yellow ×2)– Dedicated power feeds for single-color lighting

        This comprehensive system replaces messy junction boxes with a single, integrated Custom Cable solution rated for 80°C operation.

Tailored to Your Exact Requirements

Your design vision drives our manufacturing:

    Modify cable lengths or connector arrangements for unique cabinet layouts

    Request alternative color combinations for wires or connectors

    Packaging adapts to your needs: individual or blister packaging upon request

    We support flexible MOQs (from prototypes to bulk production) and deliver in short lead times. OEM & ODM partners can re-engineer this Custom Wire Harness for specialized shielding, IP-rated connectors, or custom branding – submit your schematics for rapid prototyping.
