Scalable Custom Wire Harness for Advanced Cabinet Lighting Systems

Meet complex installation demands with SW’s next-generation Cabinet Wire Harness with 12P XHB Connector – the ultimate splitting solution for multi-zone kitchen cabinet LED systems. This expertly crafted Custom Wire Harness eliminates voltage drops and messy splices while enabling flawless power distribution across large-scale installations. Engineered as a truly Customized cable solution, it supports industrial-scale cabinet configurations where standard harnesses fail. Every unit undergoes rigorous 100% electrical testing and exceeds RoHS & REACH compliance for worry-free residential/commercial use.

High-Density Engineering Simplified

Precision-built for reliability in confined spaces:

•


  Primary Conductors: 1007#24AWG color-coded wires (Black/Red)enabling instant polarity identification




•

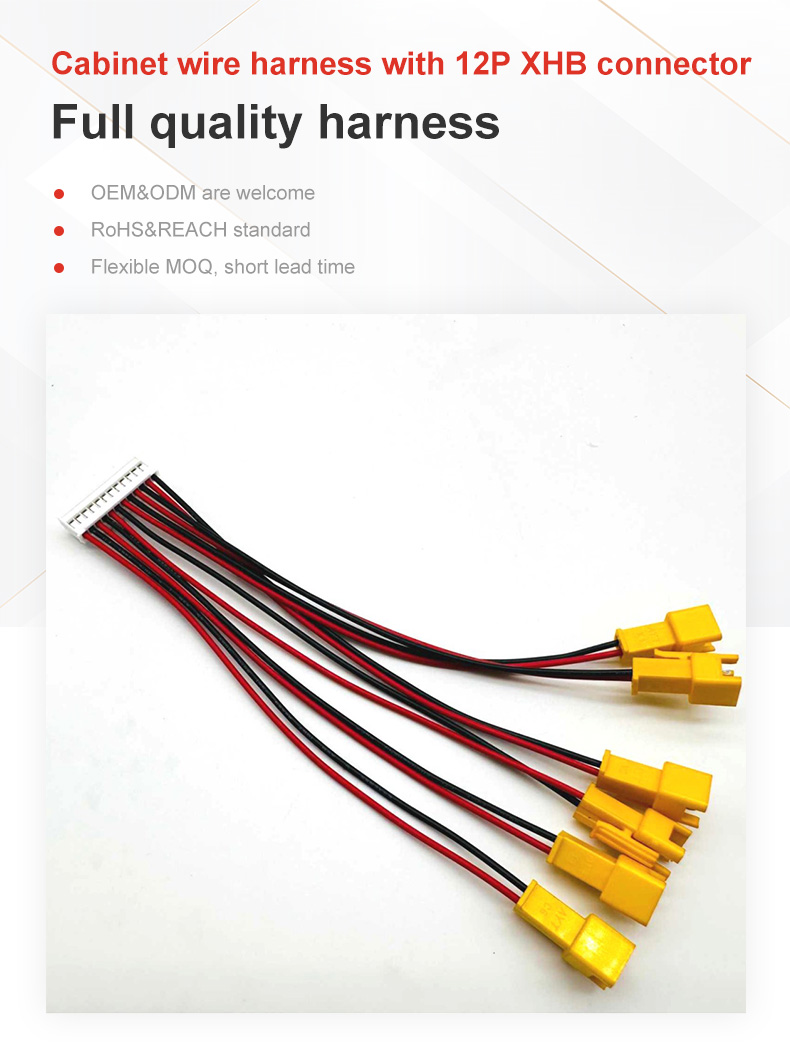

  Central Hub: XHB 12P connector (White)– High-current terminal for centralized power management




•


  Expanded Outputs: Six SM 2P connectors (Yellow)– Dedicated feeds for individual LED sections or sensors

  This integrated Custom Cable architecture replaces error-prone manual wiring with a single plug-and-play solution rated for 80°C operation.




Tailor-Made for Your Lighting Vision

Go beyond off-the-shelf limitations:

•


  Reconfigure connector counts/output arrangements (e.g., pair SM2Ps for 4-pin LED chains)




•


  Request custom wire/connector colors (beyond standard Black/Red/Yellow/White)




•


  Choose packaging: individual or blister options by request

  We deliver with flexible MOQs and short lead times – ideal for urgent project deadlines. OEM/ODM partners can adapt this Custom Wire Harness for shielded variants, custom lengths, or UL certifications – submit your wiring diagram for a prototype within 72 hours.
