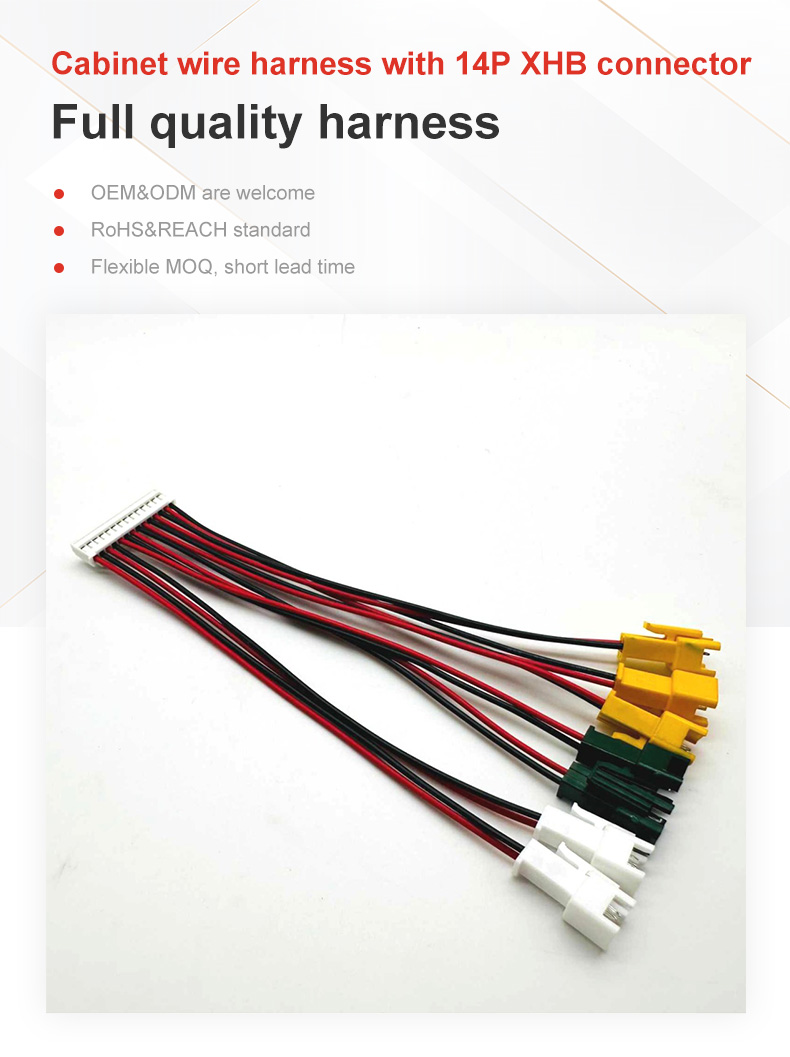

Elite Custom Wire Harness for Complex Cabinet Lighting Architectures

Master expansive lighting designs with SW’s high-capacity Cabinet Wire Harness featuring 14P XHB Connector – engineered for professional-grade splitting in premium kitchen cabinet LED systems. This intelligently designed Custom Wire Harness replaces chaotic wiring nests with a unified, color-coded solution, enabling flawless power distribution across multiple lighting zones. Precision-tested to exceed RoHS & REACH standards with 100% electrical validation, it’s the ultimate Customized cable solution for luxury residences, showrooms, and commercial kitchens where reliability is non-negotiable.

Advanced Engineering for Multi-Zone Control

Every component optimizes functionality and diagnostics:

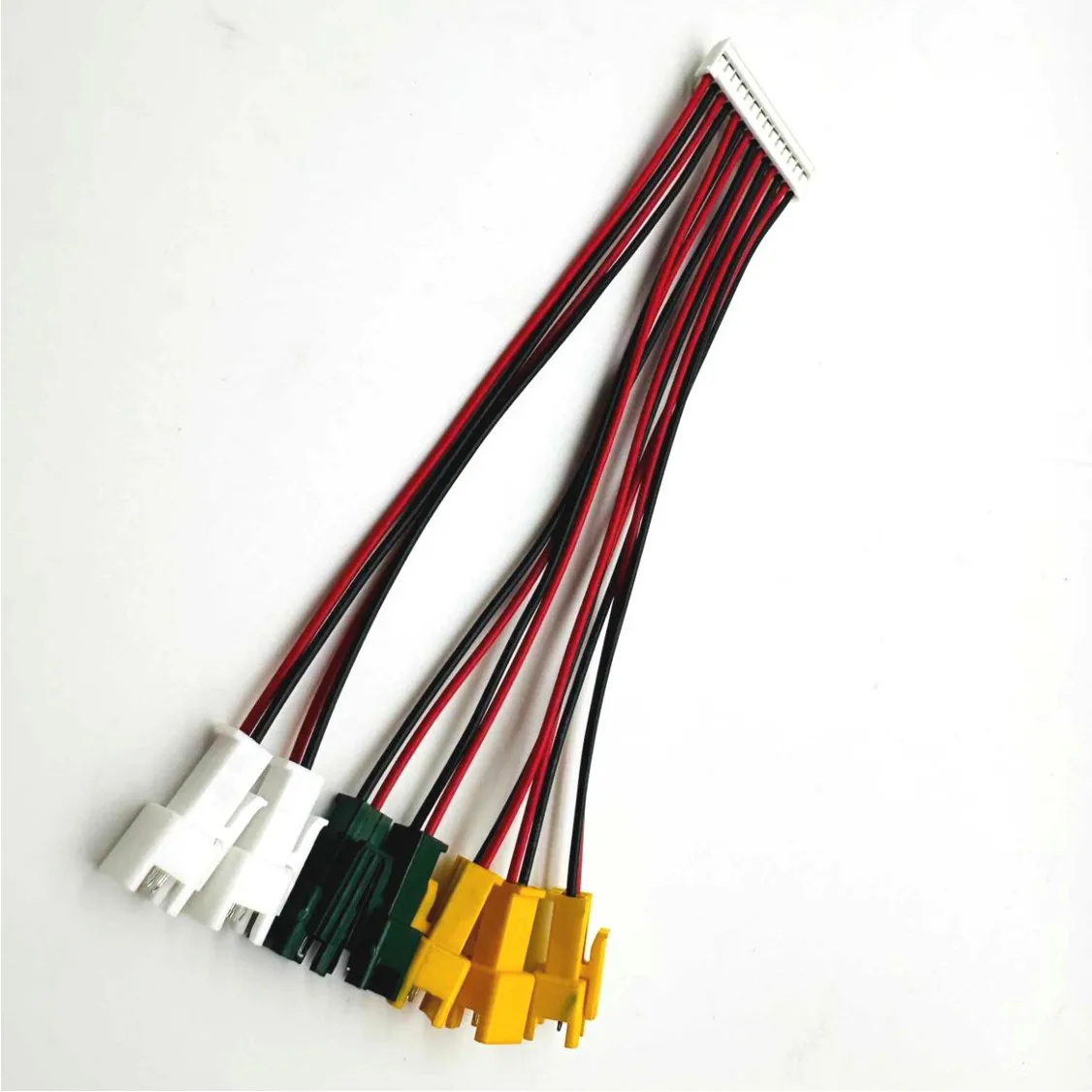

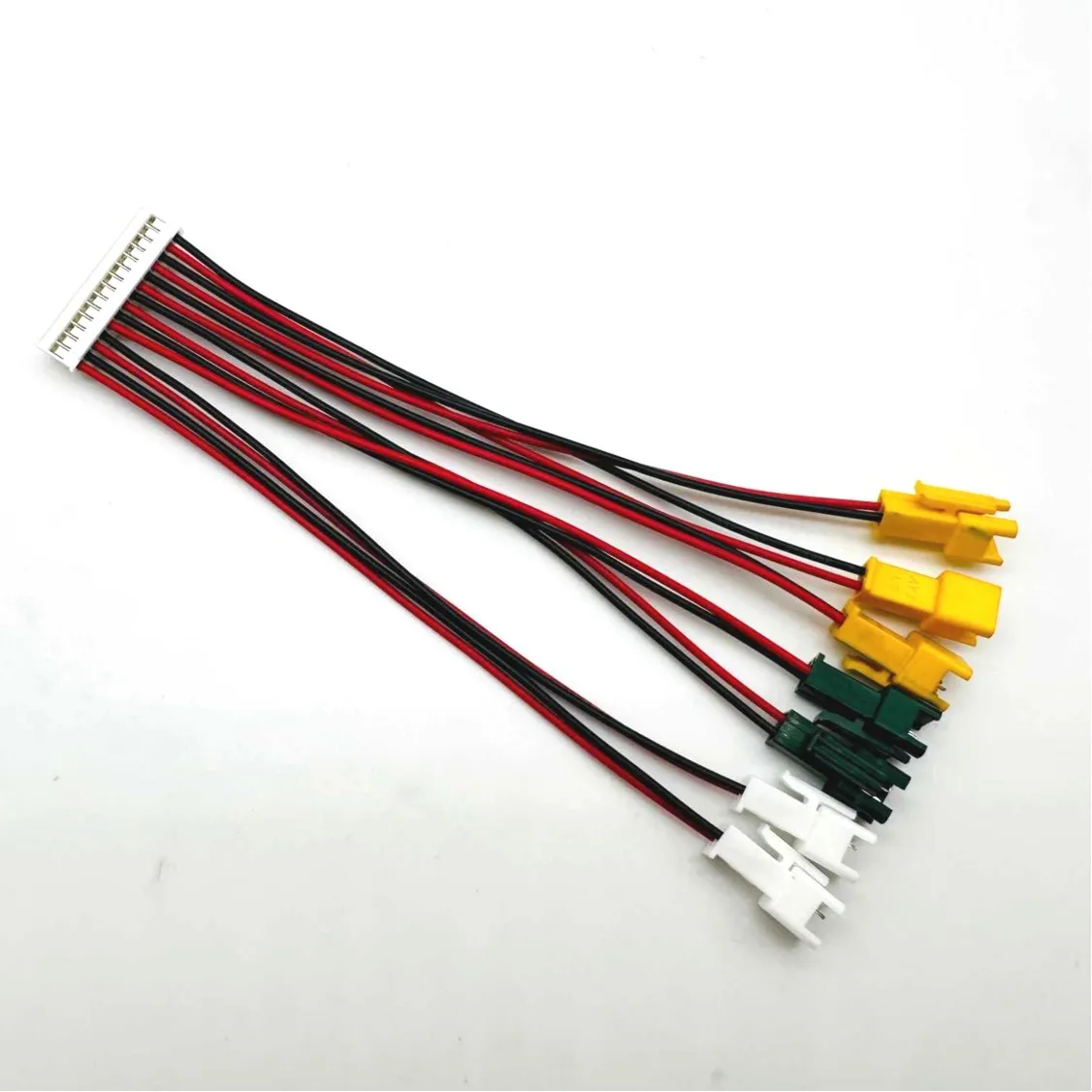

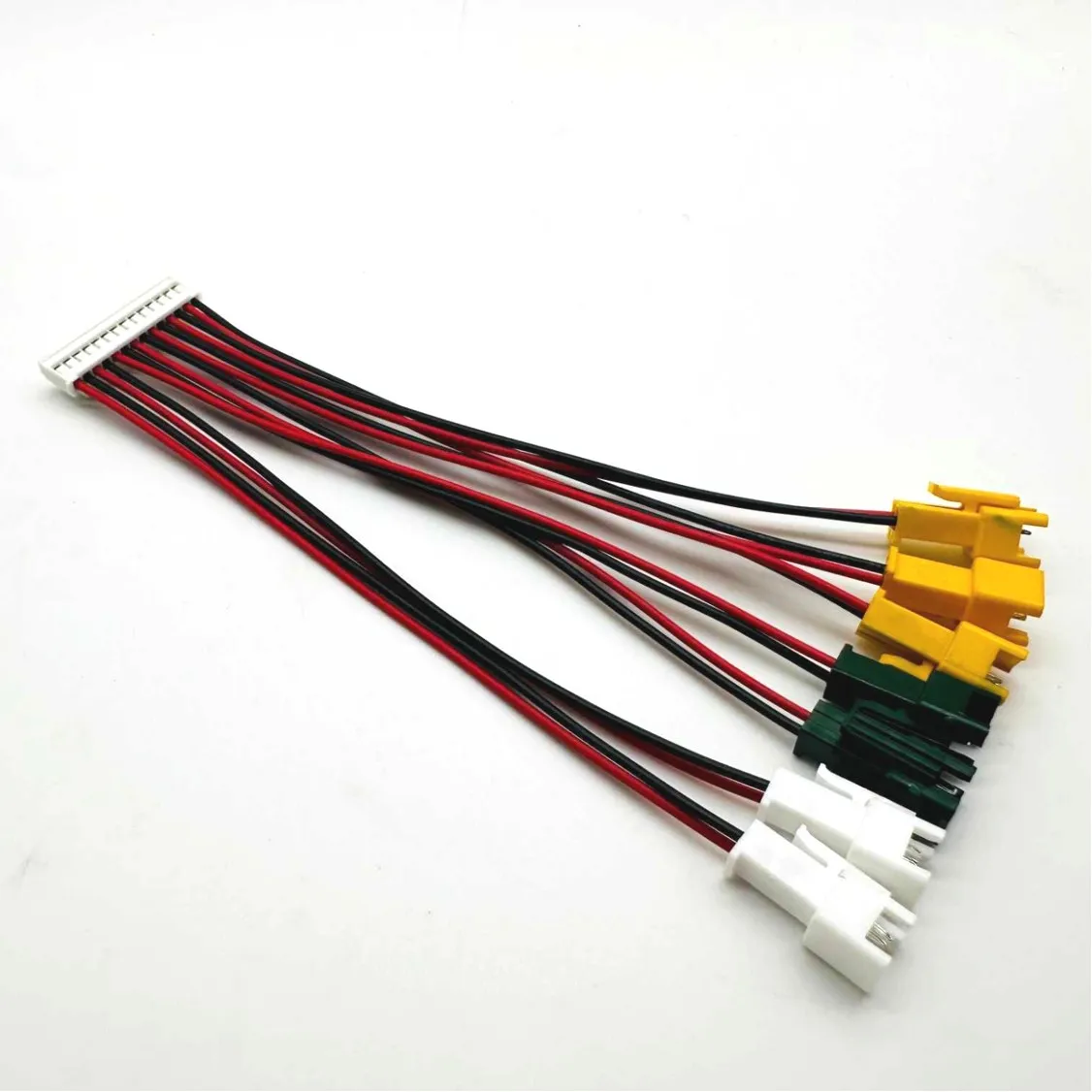

Core Cable: 1007#24AWG dual-conductor (Black/Red)for clear polarity identification

Central Hub: XHB 14P connector (White)– High-density backbone supporting 14+ circuit configurations

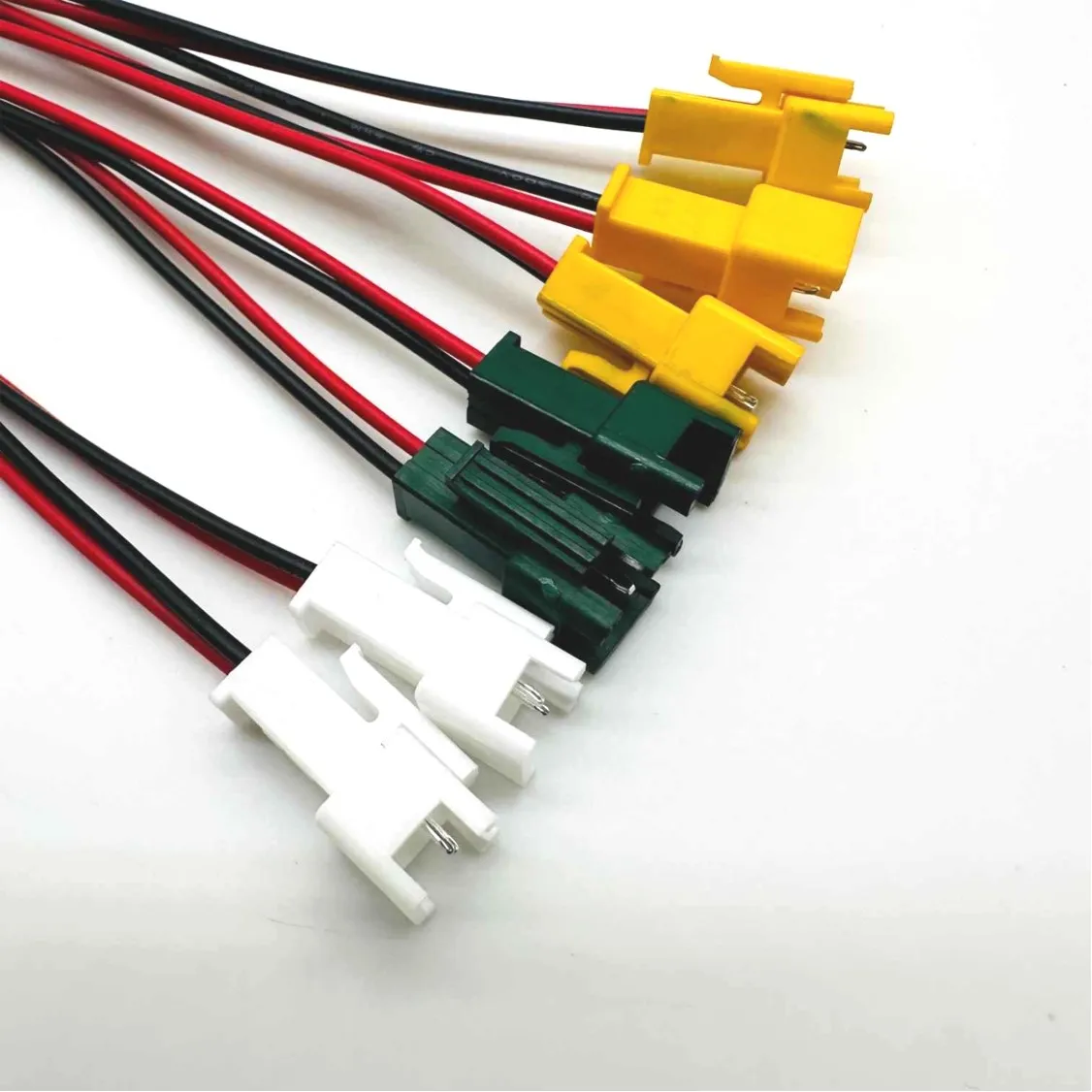

Smart Splitting System:

SM 2P White connectors (×2)– Main LED feeds

SM 2P Green connectors (×2)– Dedicated task lighting circuits

SM 2P Yellow connectors (×3)– Ambient/accent lighting zones

Color-grouped connectors enable instant fault tracing and maintenance.

Seamless Customization & Rapid Deployment

Transform your vision into plug-and-play reality:

Modify connector groupings for specialized lighting topologies

Request custom wire/connector colors beyond standard palette

Choose individual or blister packagingto match logistics

Flexible MOQs and short lead times adapt to project timelines. OEM/ODM partners can evolve this Custom Wire Harness for smart home integrations, EMI shielding, or IP68 connectors – submit your cabinet layout for rapid DFM analysis.
